Features: Made of black molded phenolic Eyelets made of brass, nickel-plated Smooth uniform surface Terminals are electro-tin plated for easy soldering Optional terminals available ("W, 3/4W, Y, Quick-Clamp" types) Interposing barriers between adjacent terminal positions Increased insurance against failure
Type W
Type 3/4 W
Type Y
Type Quick-Clamp
952 Series
111 Series
143 Series
952 Series

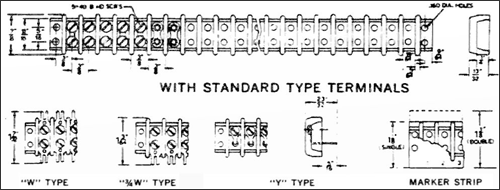

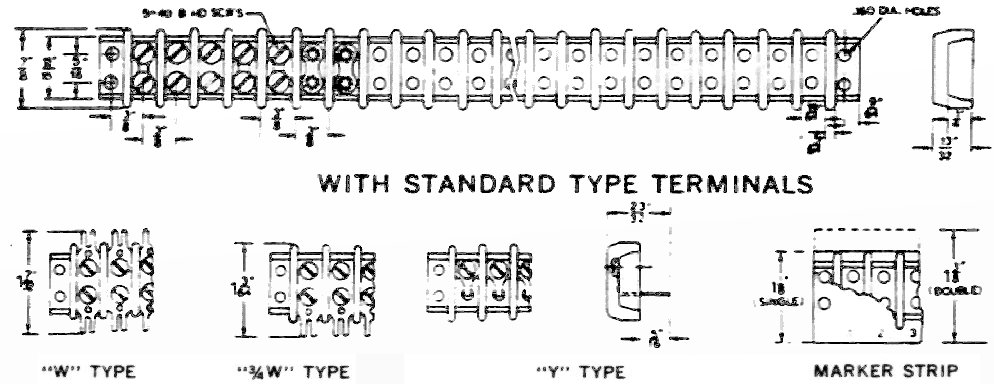

Available in 1 to 25 terminal sizes 5-40 binder head screws* accommodate up to #14 Solid Wire Terminal to ground is 1/4" Brass and combination screws available RATING: 15A@220VAC
[click diagram to enlarge]
111 Series

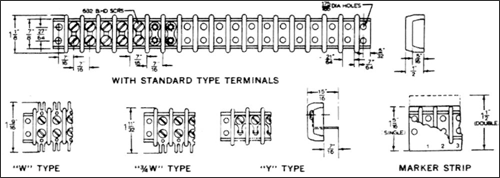

Available in 1 to 12 terminal sizes 6-32 binder head screws accommodate up to #12 Solid Wire Terminal to ground is 5/16" RATING: 20A@250VAC
[click diagram to enlarge]

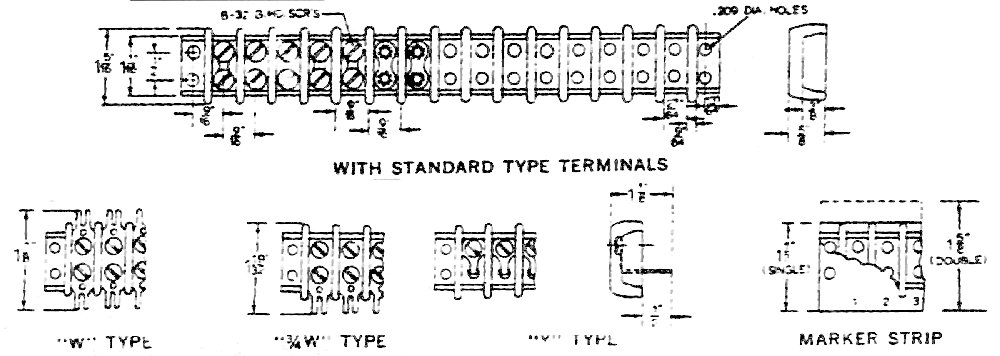

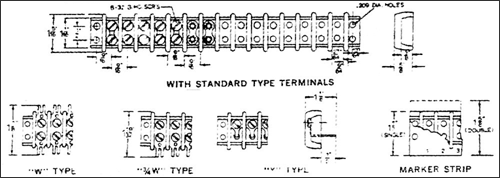

143 Series Available in 1 to 12 terminal sizes 8-32 binder head screws accommodate up to #10 Solid Wire Terminal to ground is 3/8" RATING: 30A@250VAC
Made of black molded phenolic
Available in 1 to 25 terminal sizes
